MicroCom
reliable under stress conditions
Comtronic currently manufactures three different series MicroCom connectors. The Focus lies on customer specific
solutions beside series products. Our connectors are characterized by maximum reliability with very small dimensions
as well as outstanding EMC-tightness.

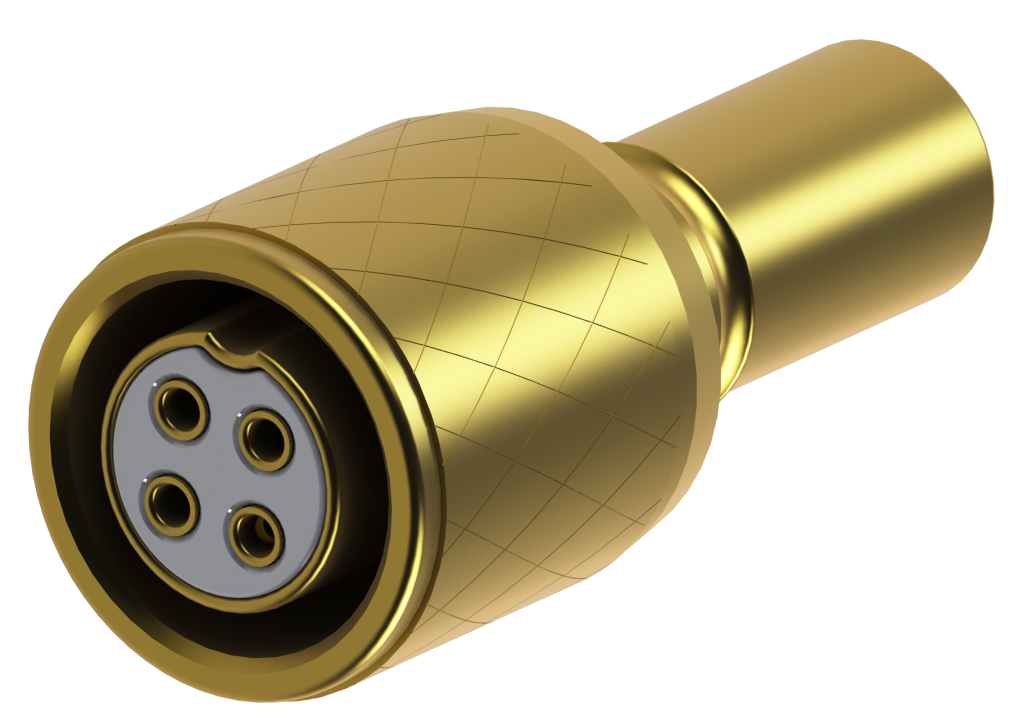

CMR
CMR series is frequently used in sensor industry, wether in dummies or on crash walls. With our wide range
of housing shapes we are able to provide the right product also for your application.
CMR series at a glance
- Circular connectors gold-platted
- Coaxial with 10/32 thread for various RG cables
- 2, 3, 4, 7 and 12 pins availabe
- IP50 and IP67 available
- Coded twist-protection
- Many different housing shapes
- Total diameter of 7.5 mm
- Crimped shield connection
- Cables up to ASWG28
- AWG22 in 3-pin
- Cables up to 4.2 mm total diameter

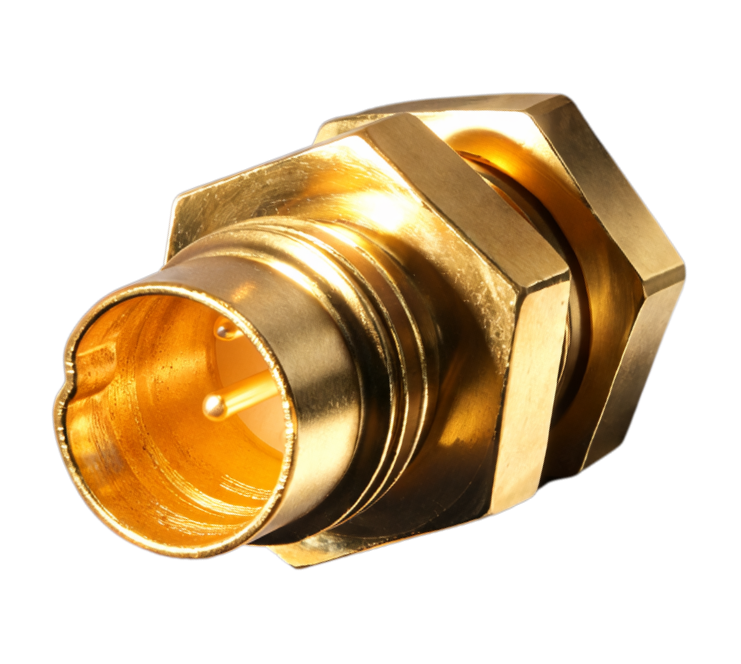

CMRM
CMRM series is based on our trusted CMR series just smaller!
CMR series at a glance
- Miniaturization of the CMR series
- Total diameter of 5.4 mm
- AWG32 wires
- Cables up to 2.7 mm total diameter
- Crimped shield connection
- Current load 3 amps
- Now available as PCB connectors for 1 GHz transmission

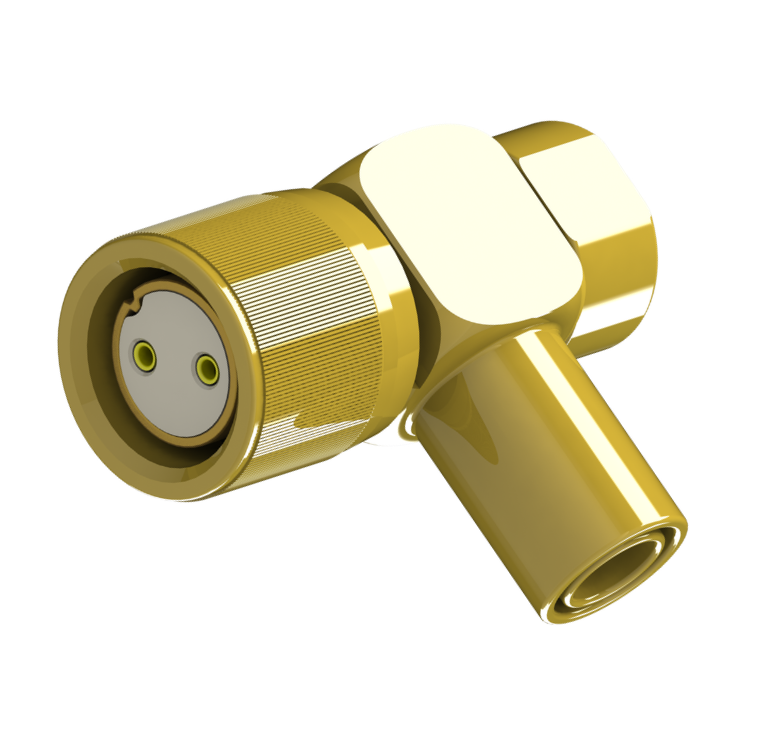

CMRH
CMRH series is designed for use in particularly harsh environments but still maintaining the smallest possible dimensions.
CMRH series at a glance
- Circular connector gold-platted
- 2, 3, 4 pins
- IP50 and IP67
- Coded twist-protection
- Total diameter of 7.5 mm
- Crimped shield connection
- Cables up to AWG22 to AWG26
- Cables up to 5.5 mm total diameter
- Current load 5 amps
Filtered connectors
The advantages of our MicroCom have now expanded to a filter.
Specifications at a glance
- Made out of Brass per QQ-B-626
- Insulators are PEEK acc. MIL-P-46183 type 1
- Gaskets made out of silicone rubber per AMS 3304
- Rohs conform
- Available as standard is the 12 pin version for PCB connection and housing mounting
