Micro-D

for heavy-duty use

Comtronic manufactures Micro-D connectors acc. MIL-DTL-83513 since the beginning in 2000. The Focus lies on customer specific solutions beside series products.
Our connectors are characterized by maximum reliability under high mechanical stress such as shock and vibration.

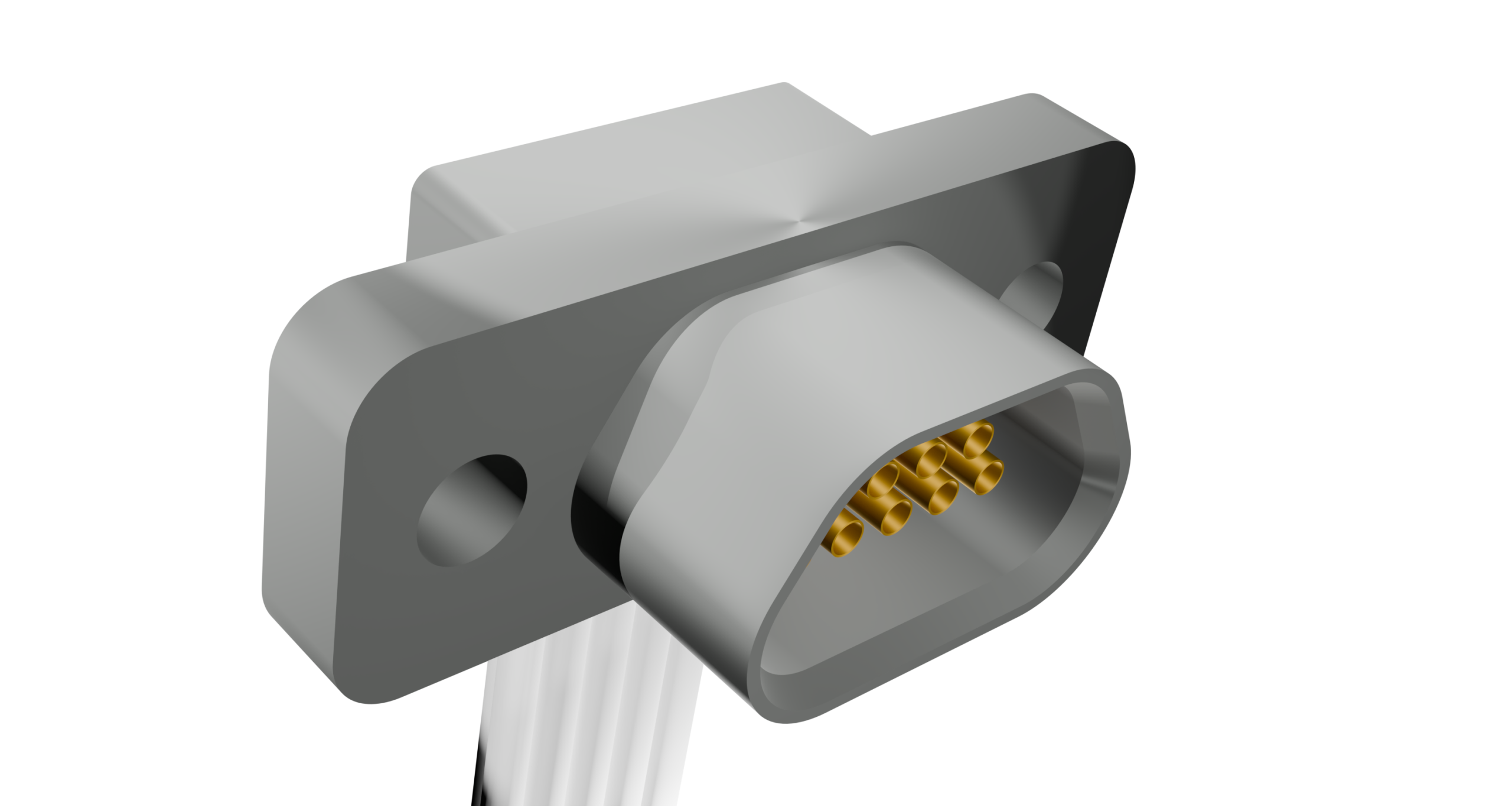

CMK

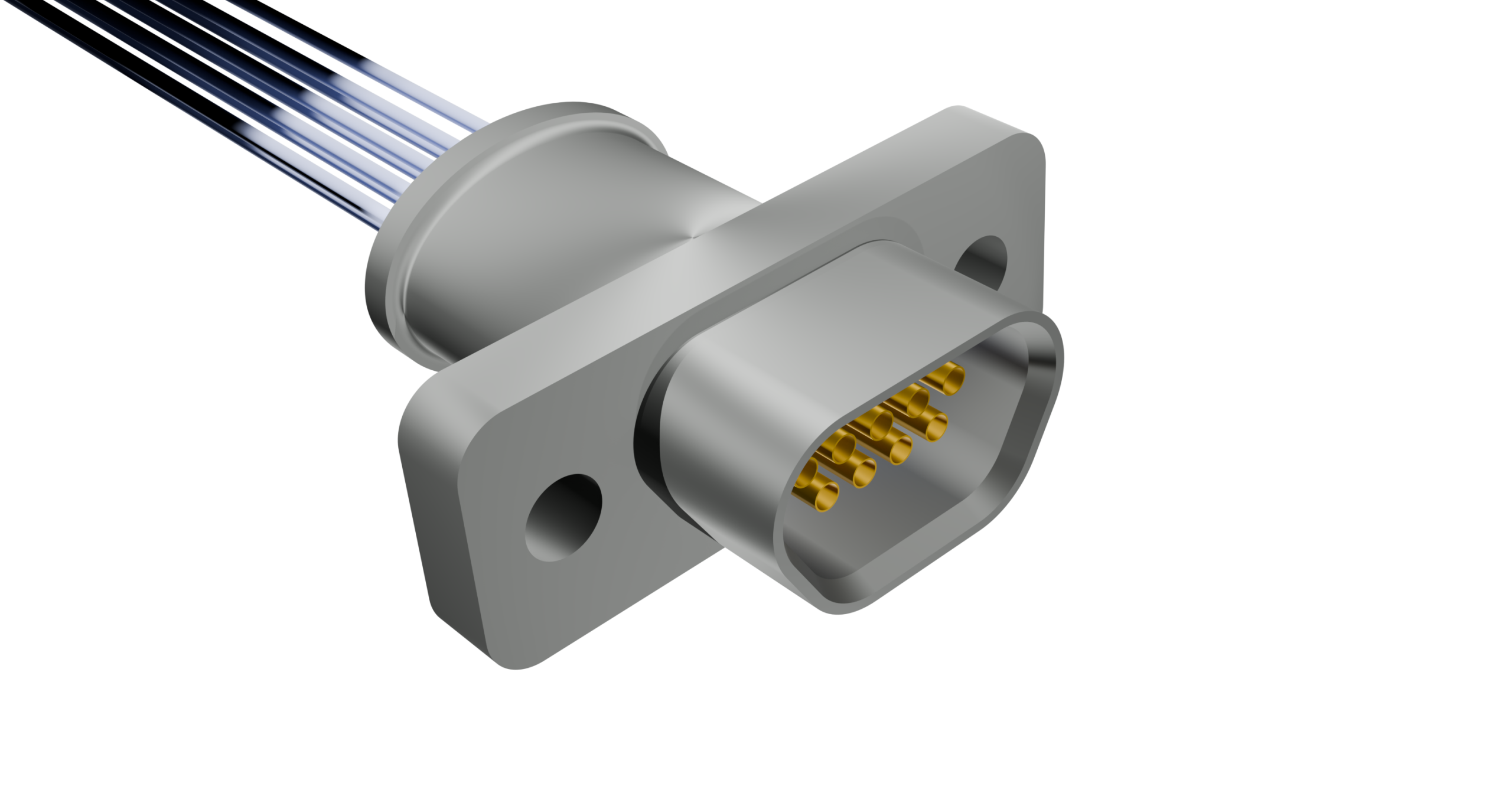

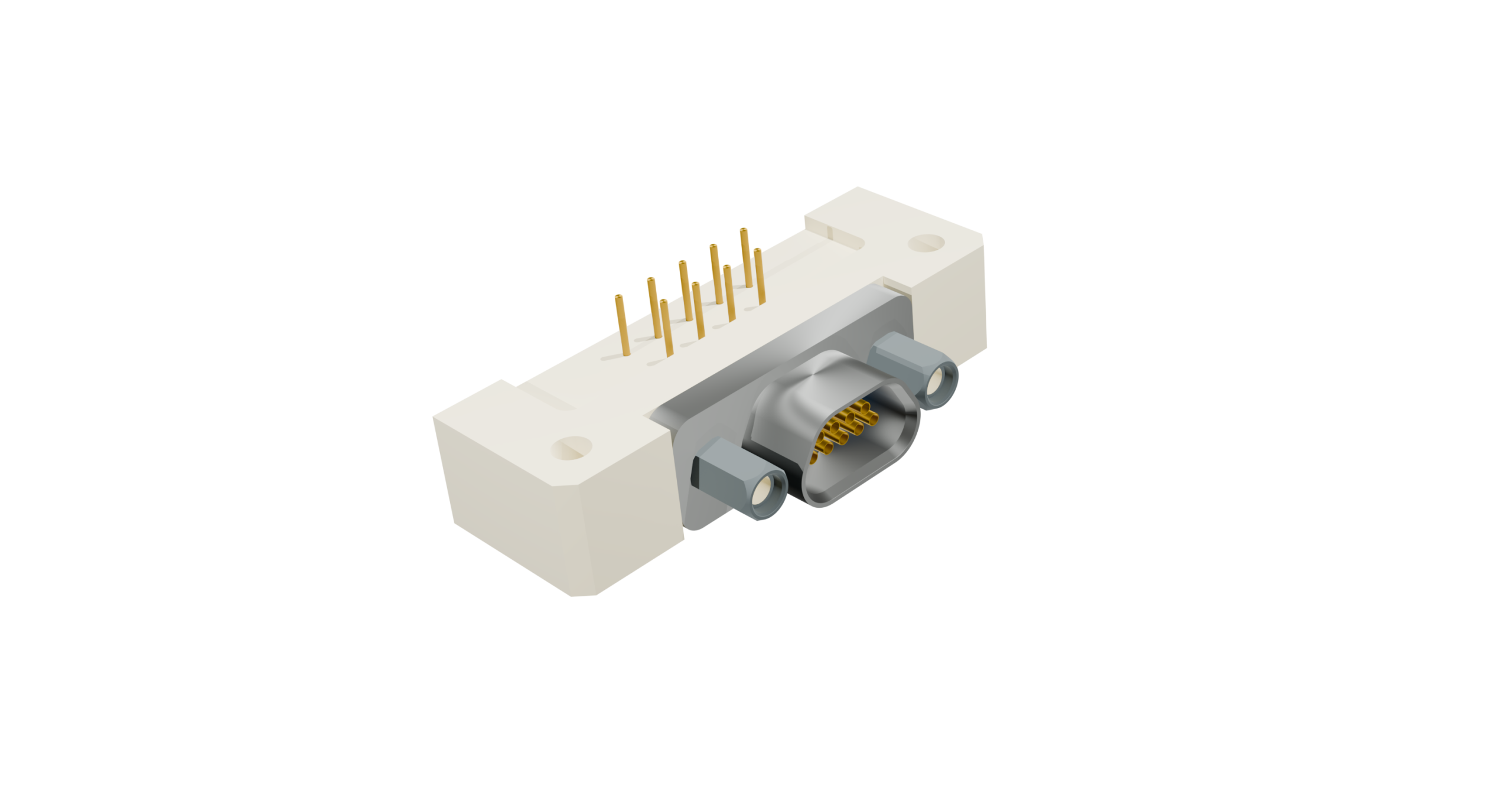

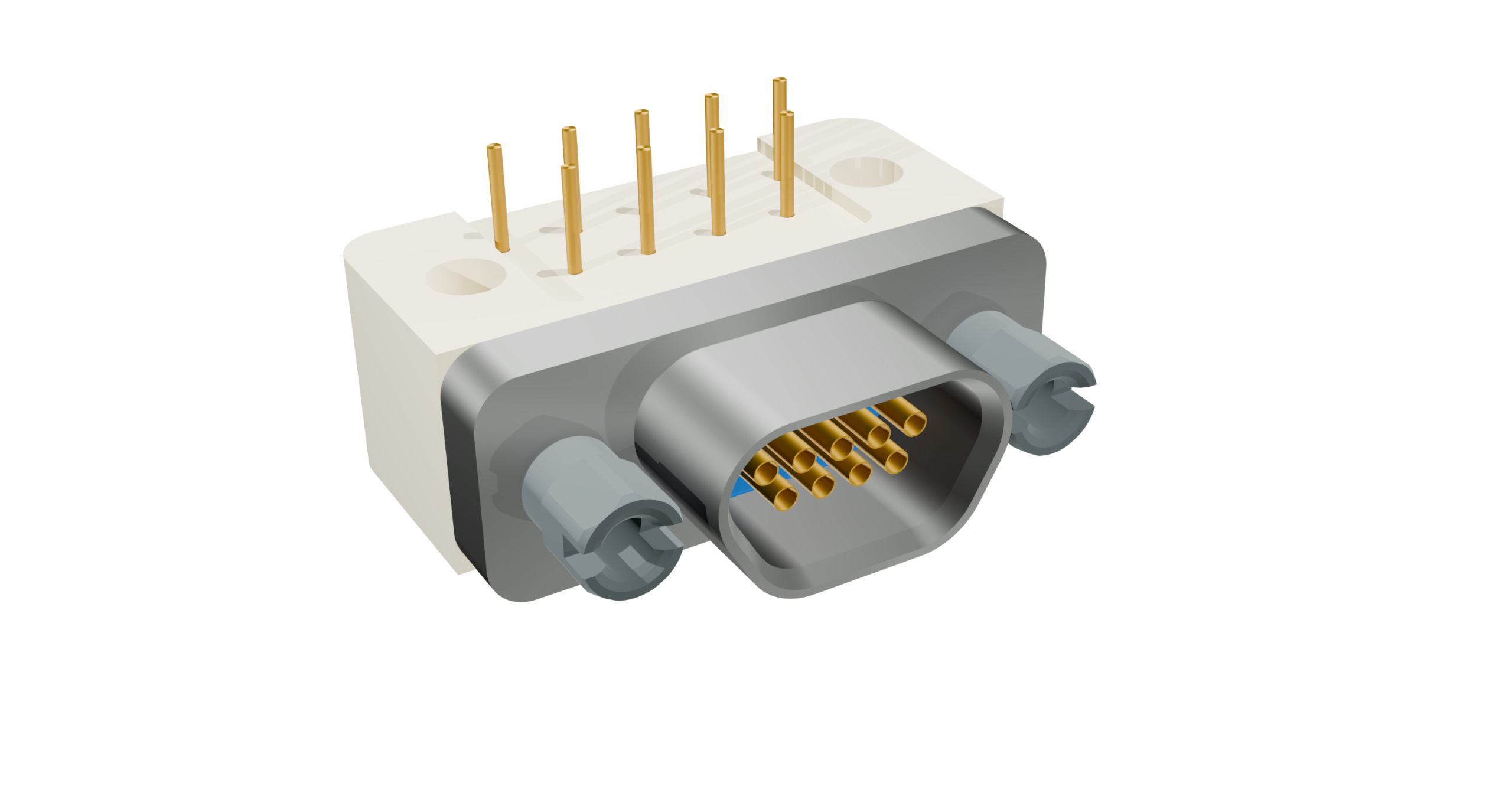

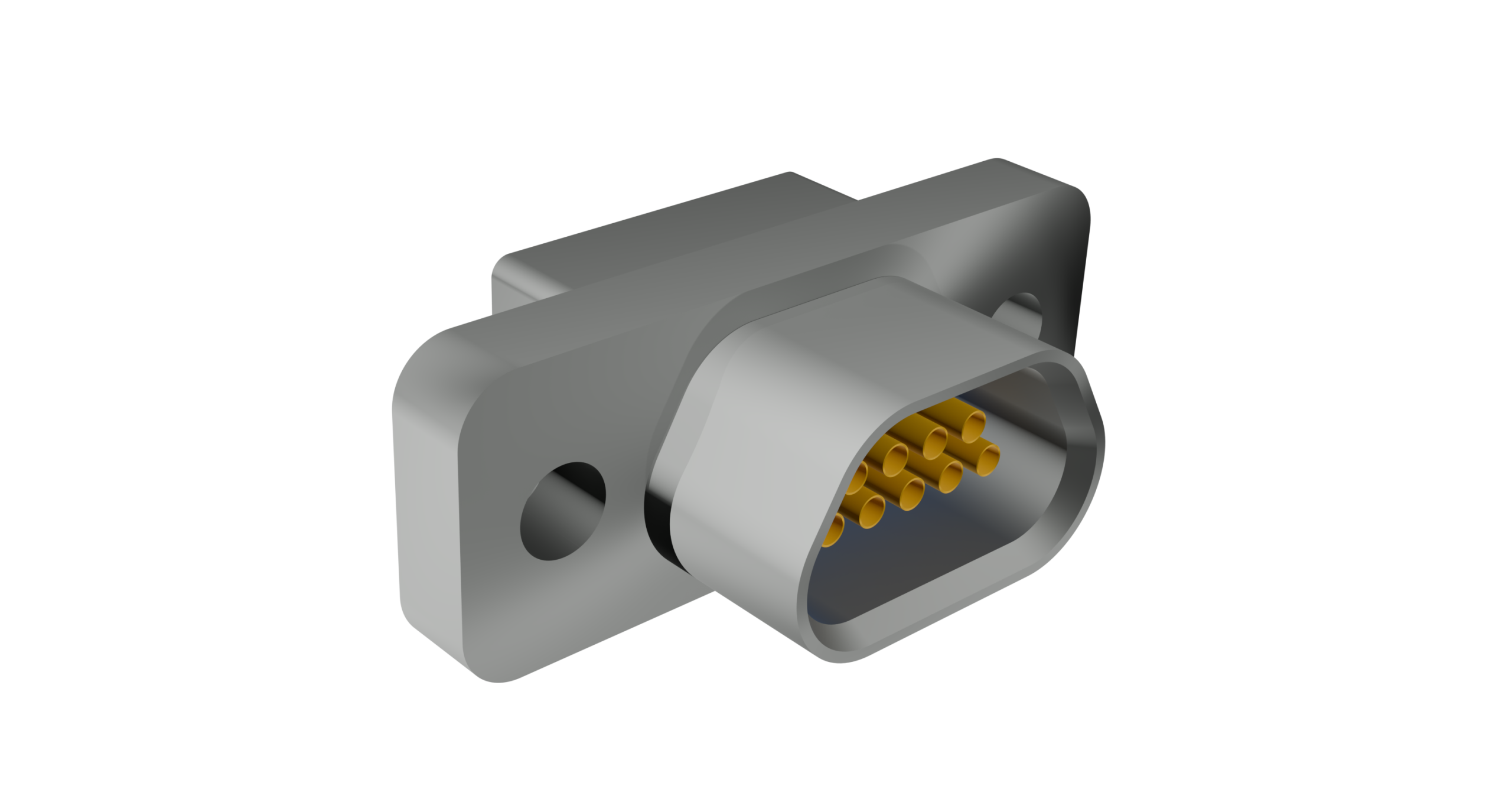

CMK series has a wide range of applications. Small sizes and high contact density enable the transmission of a large number of signals with minimal space requirements.

CMK series at a glance

  • Rectangular connectors
  • 9- to 100 contacts
  • IP67 available
  • Hermetically sealed
  • Coding possible
  • Cables from AWG22 to AWG30
  • Current load 3 amps

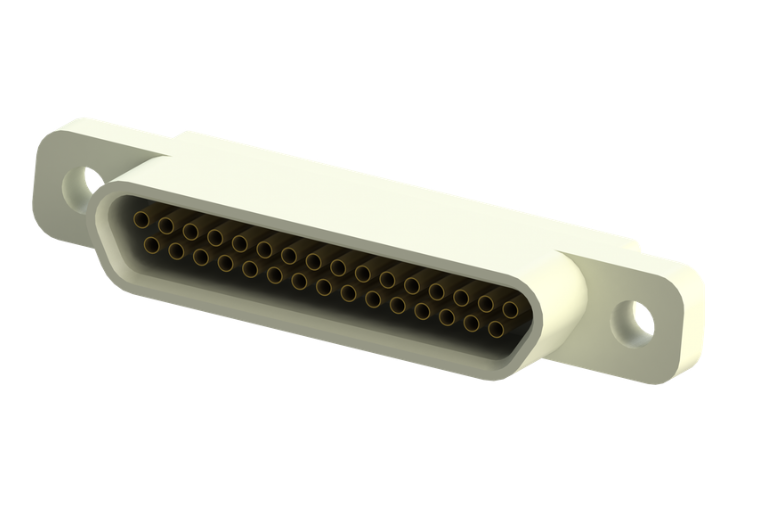

CMD

CMD series is based on the approved CMK series. What makes this series special is the thinner profile and its plastic housing for several applications.

CMD series at a glance

  • Miniaturization of the CMK series
  • Profile only 7.4 mm deep
  • Backshell with same profile depth available
  • Flexible shield connection for your cable diameter

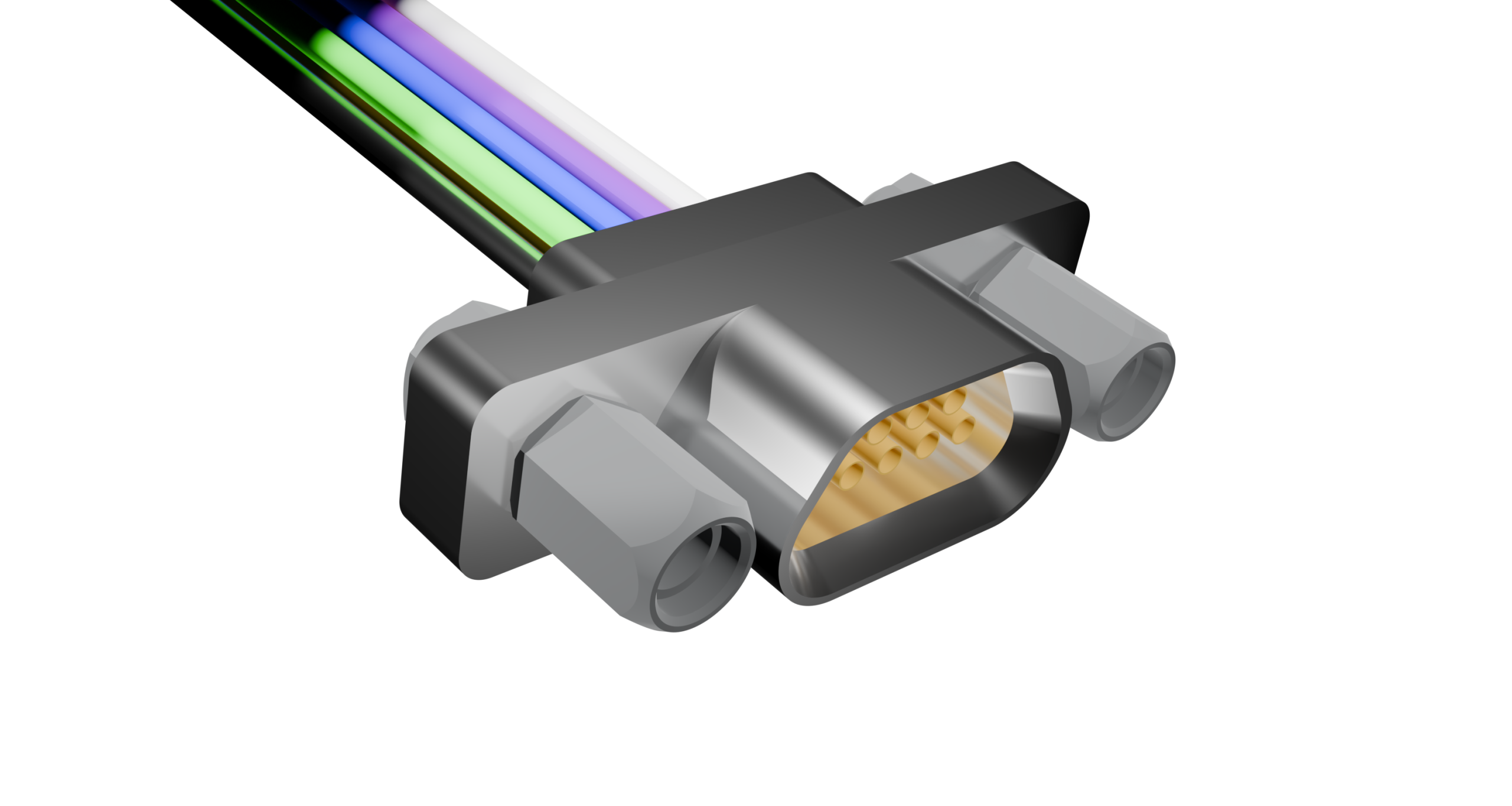

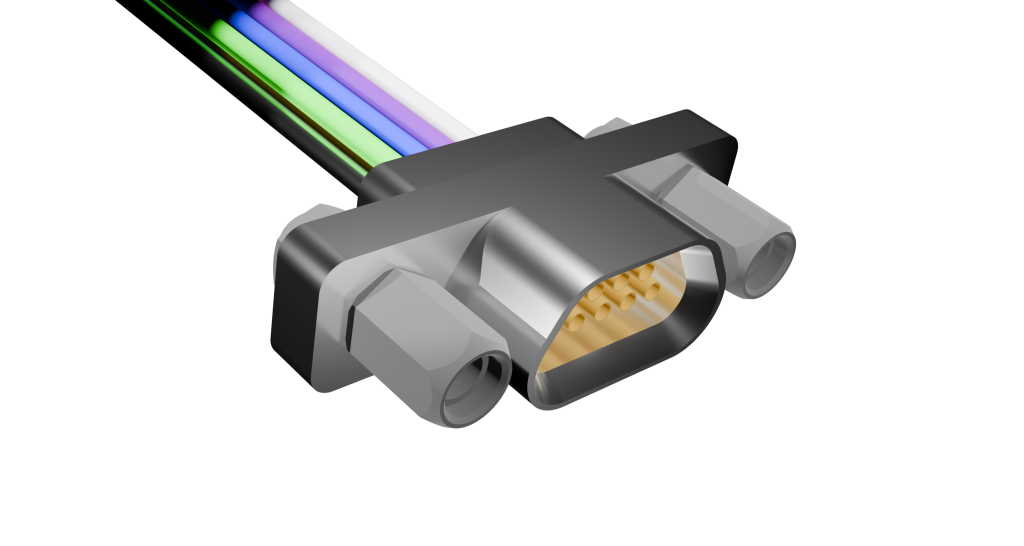

CMD M1

With CMD M1 series we offer a connector with the same sizing as the CMD series but with a metall housing instead of plastic

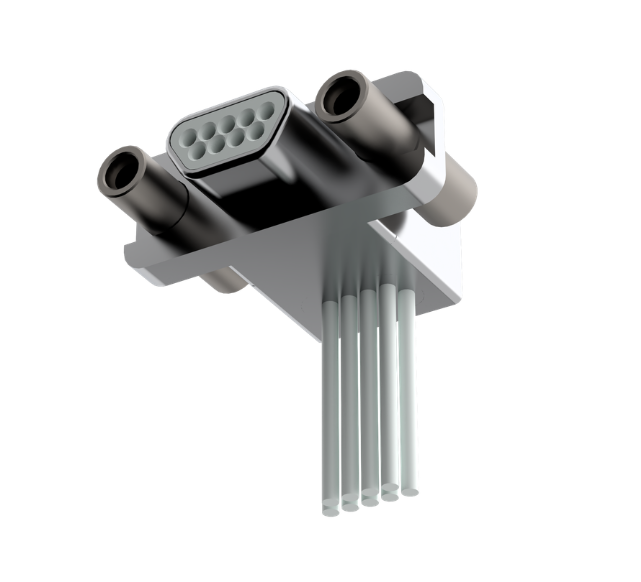

Customer specific solutions

Can’t find what you’re looking for? Please don’t hesitate to contact us, we will always find a solution for your needs!
  • 72 contacts with coding in 51 contacts housing
  • Special housing made of KOVAR

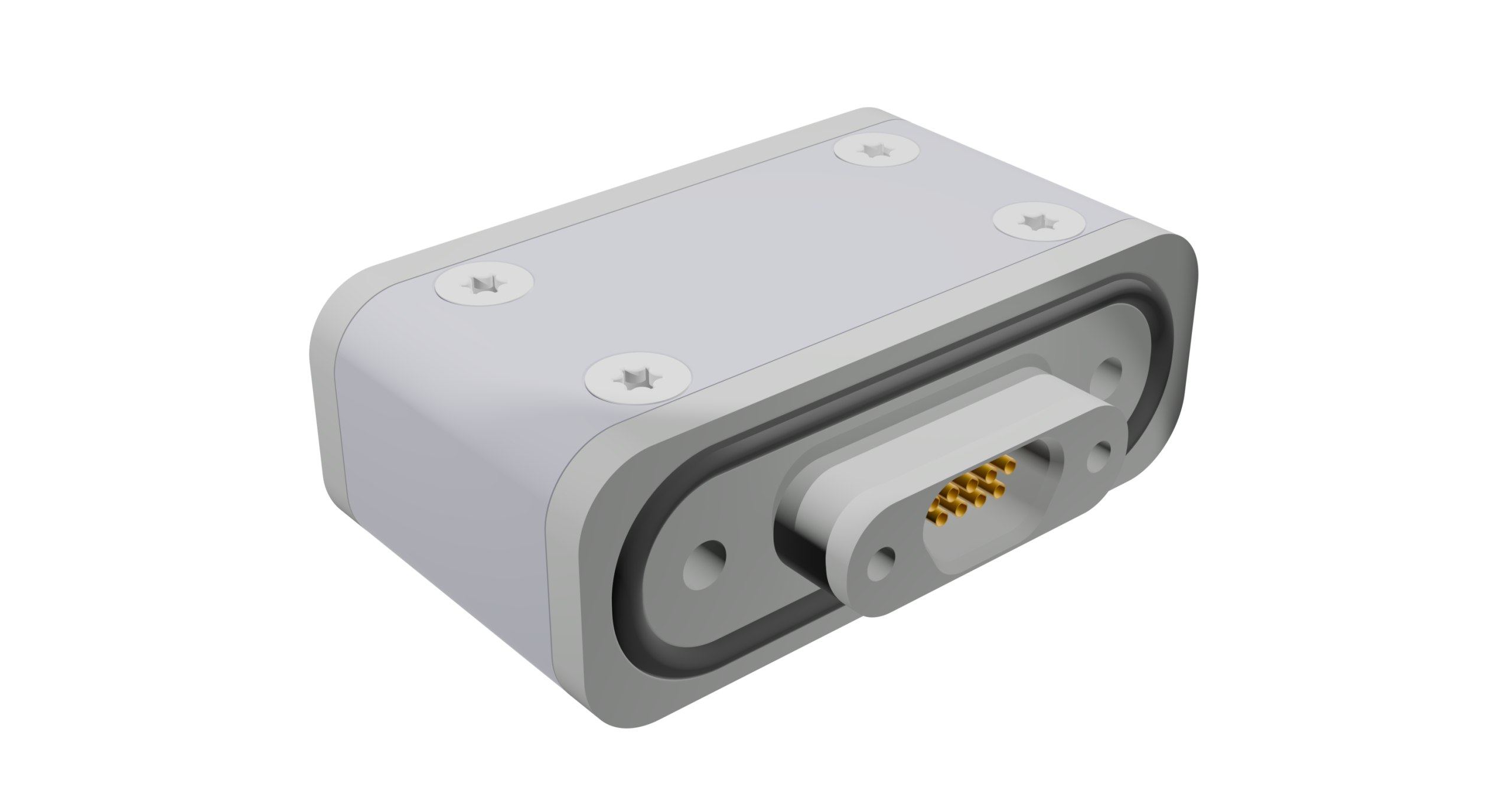

  • Stainless steel housing with EMC shield connection, pressure- and temperature resistant

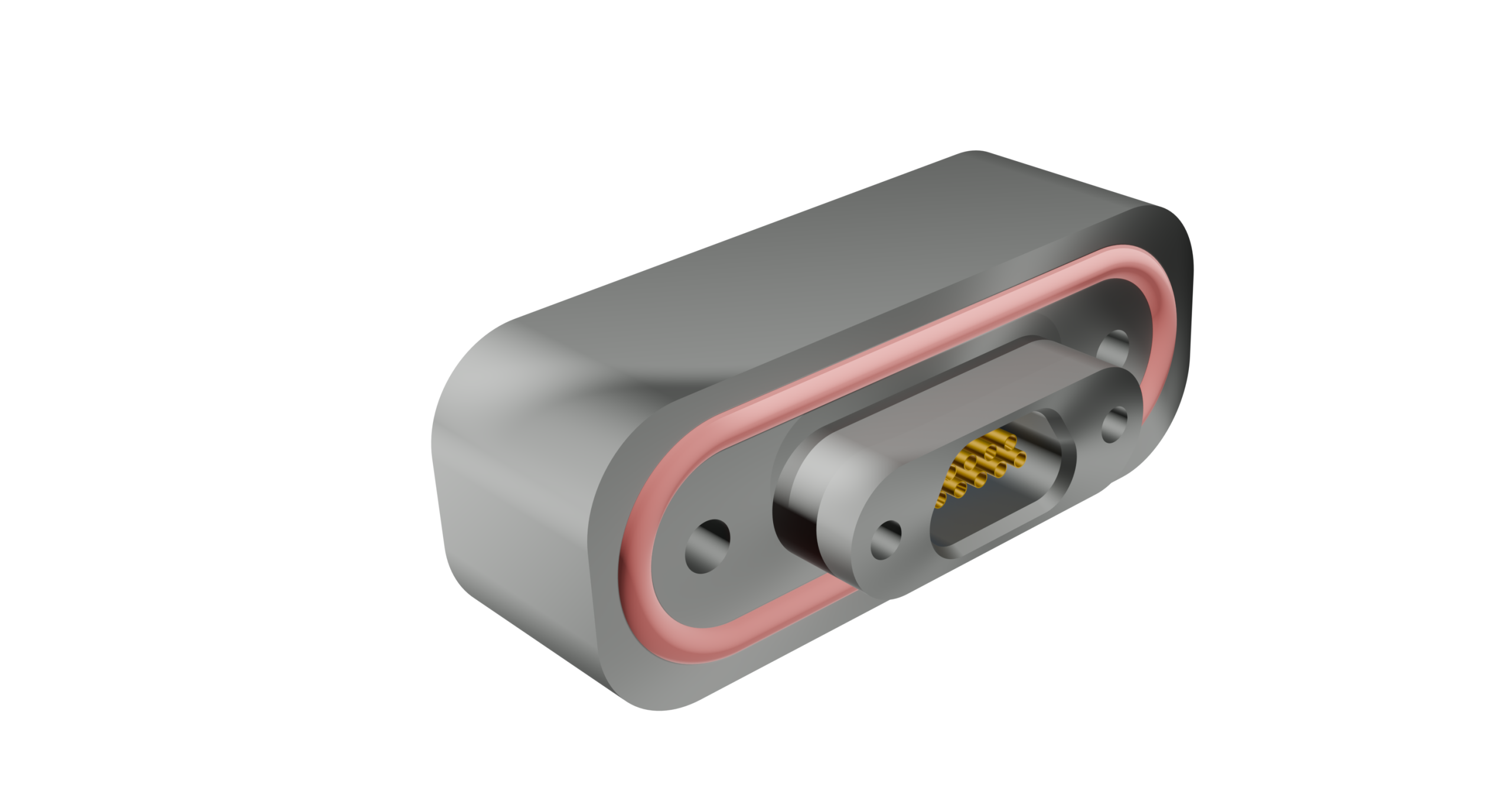

  • IP67 with conductive seal
  • Maximum load capacity up to 25.000 g
contact us
